Seals & Tools

Door Seal – MF-S1 Compression

The MF-S1 Compression Seal is primarily for butt joints. Importantly, gaps of 3-9 mm are sealed effectively. This is due to the seal’s unique shape. Furthermore, seal compression is easily achieved. Important features of the seal include:

  • Emission free consequently certified for permanent museum use.
  • Suitable for interior and exterior applications.
  • Attached using MF-T8, a double-sided clear adhesive tape.
  • Available in clear, in rolls of 25 meters (82 feet).

Manfred Frank Compression Seal for Doors

Door Seal – MF-S2 Brush/Swipe

This seal is designed for glass panels. It is attached to the leading edge of the door for a perfect fit when it is closed. As a result, there is minimal seal resistance. Furthermore, it can be used on a single edge of the door for gaps between 3-5 mm. Alternatively, it can be used on opposing edges for gaps between 8-10 mm.

Lastly, the seal is made from age-resistant permanent elastic silicon for high durability sealing. Other important features include:

  • Emission free, consequently certified for permanent museum use.
  • Suitable for interior and exterior applications.
  • Attached using MF-T8, a double-sided clear adhesive tape.
  • Available in clear, in rolls of 25 meters (82 feet).

Manfred Frank Brush Seal for doors

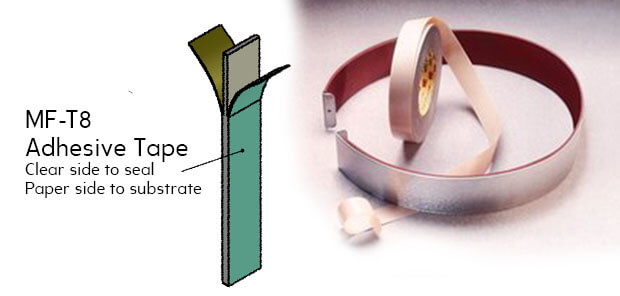

Door Seal Adhesive Tape – MF-T8

MF-T8 is custom made for silicone seals.

As a result, on one side is a firm pressure sensitive silicone seal. The other side has a high performance acrylic adhesive. Important features include:

  • Emission free, consequently certified for permanent museum use.
  • For use with all Manfred Frank door seals.
  • Available in clear.
  • Available in rolls of 33 metres (108 feet).

MF-T8 tape

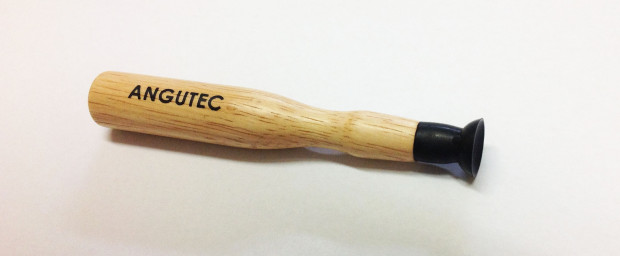

Door Kit Tool – MF-TL1

This custom tool removes the clamping plate cap on the Manfred Frank door mount D01. Consequently, any changes or maintenance can be easily completed. Above all, there is no damage to the stainless steel.

  • Manufactured from hardwood and neoprene.

Door kit tool
